Reducing Lead Times: How to Leverage Creallo’s AI-Powered Real-Time DFM Analysis

Design for Manufacturing (DFM) is a critical step in verifying whether a 3D model can be realized through actual production processes.

Surprisingly, many companies wait until the quoting stage to perform their first DFM check. However, by that point, the cost of design iterations and the production timeline have often already ballooned.

The key to effective DFM is not just if you do it, but when and how fast you do it.

Why DFM Is the Decisive Factor in Project Costs

DFM is more than just a feasibility check; it is the process of making a design more cost-effective and efficient to produce.

In the industry, this is often explained by the "Rule of Ten." It suggests that the cost of finding and fixing a defect increases tenfold at each subsequent stage of the product lifecycle. A problem identified during the design phase can be fixed in minutes, but a design change requested after mass production has begun can result in astronomical losses.

A Guide to Leveraging DFM Analysis by Design Phase

Creallo offers a free analysis service that provides real-time DFM feedback. Once you upload your model to our instant quote page, our AI engine completes the analysis in less than 60 seconds, providing intuitive feedback on the manufacturability of your parts.

Applying DFM checks at these specific stages will significantly improve your design integrity:

Immediately After Initial Draft: Basic Geometry Review

This is the "Golden Time" for changes, where modifications are least expensive. You should use this stage to eliminate critical risks such as undercuts, thin walls, and structural errors.

After Material Selection: Detailed DFM Review

As the design matures, you must verify its suitability for the actual manufacturing environment:

• Feasibility of the selected material for the specific geometry.
• Process-specific production constraints (e.g., CNC vs. 3D Printing).

Before Final Hand-off: Final Validation and Data Freeze

At this stage, the goal is to minimize further changes and prepare for procurement. After freezing the final drawings, you can generate an instant quote on Creallo and share the PDF quote with your team or purchasing department to accelerate the decision-making process.

Key DFM Parameters Diagnosed by Creallo AI

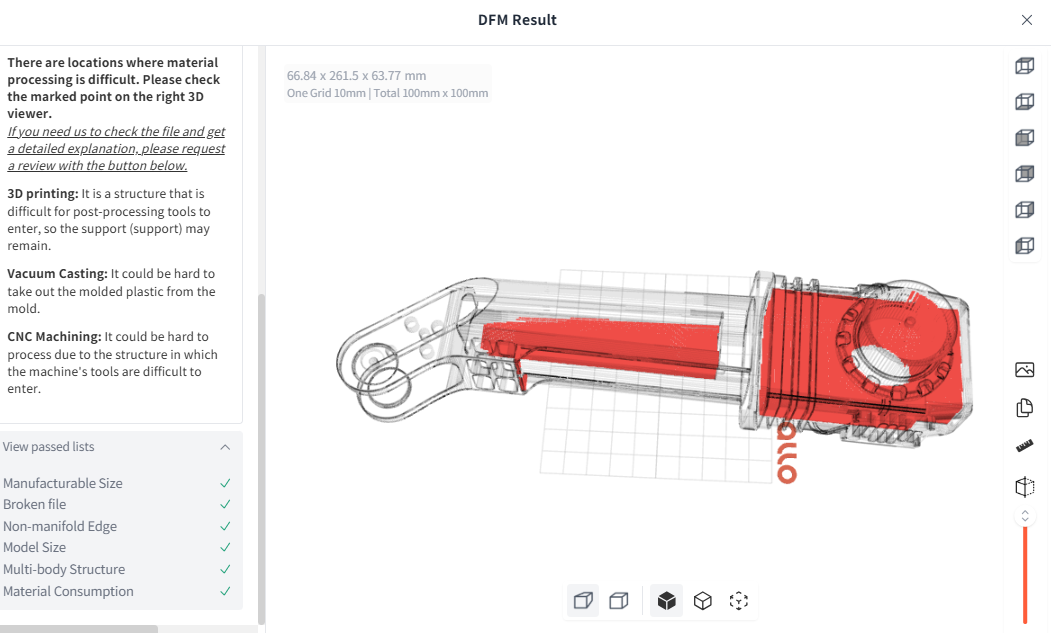

Creallo’s DFM system analyzes major manufacturing risks as soon as the file is uploaded. Results are visualized in our 3D viewer using a color-coded system:

• Yellow (Warning): Manufacturing is possible, but there is a risk of quality degradation. Review is recommended.
• Red (Critical): The design is unproducible as-is. Modification is mandatory.

Core Inspection Items:

• File Integrity (STL / STEP)
• Dimensional Anomalies
• Material Volume Optimization
• Non-Manifold Geometry and Multi-Body Checks
• Build Volume Compatibility
• Wall Thickness and Potential Deformation Areas
• Closed Geometries and Trapped Volumes (Internal Cavities)

TIP: Creallo utilizes specialized AI algorithms optimized for 3D Printing (SLA, SLS), CNC  Machining, and Vacuum Casting to provide the most accurate manufacturing feedback.

Beyond AI: "Request Expert Review"

For highly complex geometries or parts with specific boundary conditions, utilize our Expert Review feature. Creallo’s veteran application engineers will manually inspect your file and provide detailed commentary categorized as: Proceed, Caution Required, or Cannot Manufacture.

DFM Checklist by Design Stage

Frequently Asked Questions

Q: Why is DFM review so important?

A: It validates that your 3D model can be physically realized through manufacturing processes, preventing costly trial-and-error and redesigns late in the cycle.

Q: When is the most effective time to perform a DFM check?

A: It is most efficient to perform 2–3 iterations: Draft → Material Selection → Final Release. This allows for a progressive refinement of the design.

Q: What file formats are supported?

A: We support STEP and STL. We highly recommend using STEP files for the highest data fidelity.

Q: How long does the analysis take?

A: You will receive DFM feedback within approximately 1 minute of uploading your file.

DFM is a "Process," Not an "End Result"

If you only encounter DFM feedback at the final quoting stage, it’s already too late. By integrating DFM checks early and often, you can achieve the "Triple Crown" of hardware development: Lower costs, shorter lead times, and superior quality.

Do you have a design in progress? Upload it to Creallo now and get your manufacturability feedback in 60 seconds.
