[Case Study] Revolutionizing Semiconductor Component Manufacturing: How Creallo Cut Lead Times by 70% Without Tooling

[Project Summary]

• Partner: Global Semiconductor Test Solution Provider
• Objective: Establish a manufacturing framework to meet both rapid delivery and precision quality in a high-mix, low-volume environment.

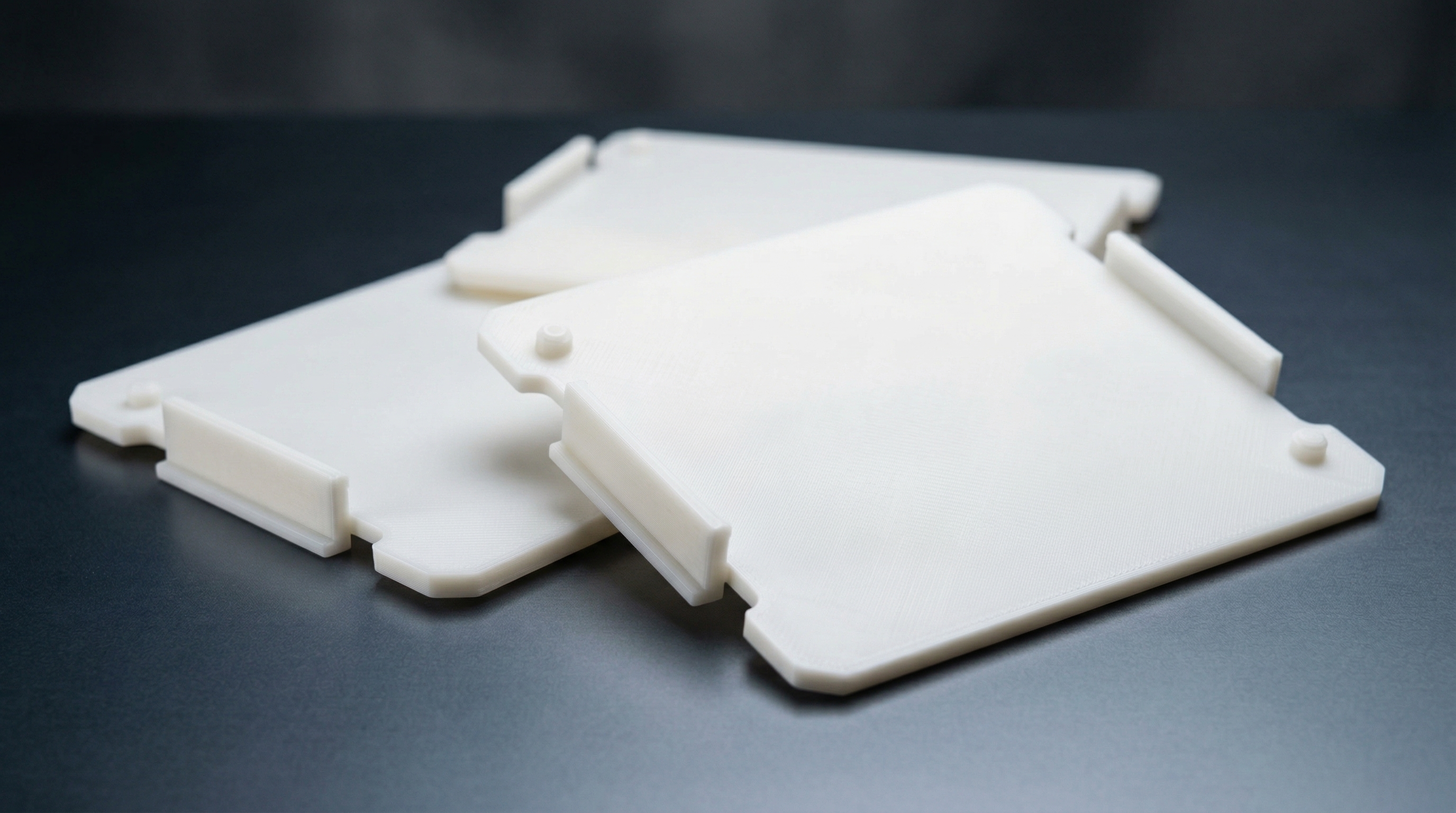

• Component: Protective Covers for Semiconductor Chip Shipping (Multi-specification support)
• Process: SLA 3D Printing (ABS-like White Resin)
• Key Achievements:
  • 100% Reduction in initial tooling costs.
  • Approximately 70% Reduction in production lead time.
  • Maintained dimensional tolerances within ±0.2mm for repeated production.
  • Established an On-demand manufacturing structure without hard tooling.
  • Immediate flexibility to respond to diverse chip specifications.

The Practical Challenges of High-Mix, Low-Volume Production

In the semiconductor industry, as chips become smaller and more diversified, the specifications for protective covers are becoming increasingly fragmented. During the testing and shipping phases, the ability to rapidly adapt to these varying dimensions is critical.

Traditional mold-based manufacturing, however, faces significant hurdles due to high initial tooling costs and long lead times, making it ill-suited for high-mix, low-volume environments. Our client, a global provider of semiconductor test solutions, specializes in high-precision test sockets and components. In an industry where repeatability and stability are paramount, the client faced the following challenges:

• Urgent Production Requirements: Need for 300–400 units in a very short window.
• Logistical Bottlenecks: Shipment delays caused by long manufacturing lead times.
• Dimensional Inconsistency: Quality variance during repeated production runs.
• Structural Inefficiency: High overhead costs when managing multiple specifications.

The Core Challenge: Balancing Rapid Delivery with Precision

While chip protective covers may seem simple in geometry, their technical requirements are demanding. Producing new molds for every specification change is economically unfeasible. Yet, quality cannot be compromised; any minor interference or excessive clearance during assembly can directly lead to shipping defects and reliability issues.

The client's requirement was clear: they needed a manufacturing framework that allowed for immediate production without hard tooling while guaranteeing consistent dimensional accuracy across hundreds of units.

Strategic Shift to SLA 3D Printing

The client initially evaluated Vacuum Casting, a common method for low-volume replication. However, for a project involving multiple specifications and a total volume of 300–500 units, the limitations were evident. Vacuum Casting relies on silicone molds with a short lifespan, meaning the molds would need to be recreated dozens of times—inevitably leading to cost overruns and lead time delays.

Creallo resolved this structural issue by implementing SLA (Stereolithography) 3D Printing. By utilizing ABS-like white resin, we achieved a superior surface finish comparable to injection molding while maintaining the rigorous dimensional tolerances required for semiconductor components.

Beyond mere printing, the key was designing a customized manufacturing path optimized for semiconductor parts. Creallo’s process engineering expertise allowed us to achieve both high-precision quality and rapid delivery simultaneously.

— Ji-wook Choi, Team Leader at Creallo

Rigorous Quality Standards and Proven Business Impact

Creallo applied strict Quality Control (QC) standards before delivery:

• Surface integrity: Zero scratches, contaminants, or molding defects.
• Dimensional tolerance: Maintained within ±0.2mm across repeated runs.
• Fit-for-purpose: Verified zero-interference assembly.

Based on these rigorous standards, this project proved its value beyond simple fabrication by delivering tangible business outcomes. First, Creallo eliminated 100% of the initial tooling costs, removing the financial burden of multi-spec production. Second, we accelerated the manufacturing cycle from 3–4 weeks to just a few days, reducing lead times by approximately 70%. Most importantly, by maintaining a stable tolerance of ±0.2mm even during continuous output, we ensured reliable product protection and eliminated quality variance.

Customer Success & Future Outlook

After adopting Creallo’s service, we achieved a 100% reduction in tooling costs and a 70% cut in lead times. The fact that they maintained a tolerance of ±0.2mm over repeated batches was particularly impressive. Creallo is now our primary partner for new specifications and urgent orders.

— Client Project Manager

This project demonstrates how a structural shift in manufacturing can overcome the limitations of traditional methods in high-mix, low-volume environments. Creallo continues to provide expertise across various processes — including SLA, SLS, CNC Machining, and Injection Molding — to design the most efficient manufacturing path for every new requirement.
